T88 : 8" TecLoq - Eight Function Box Light

*Part does not include mounting bracket

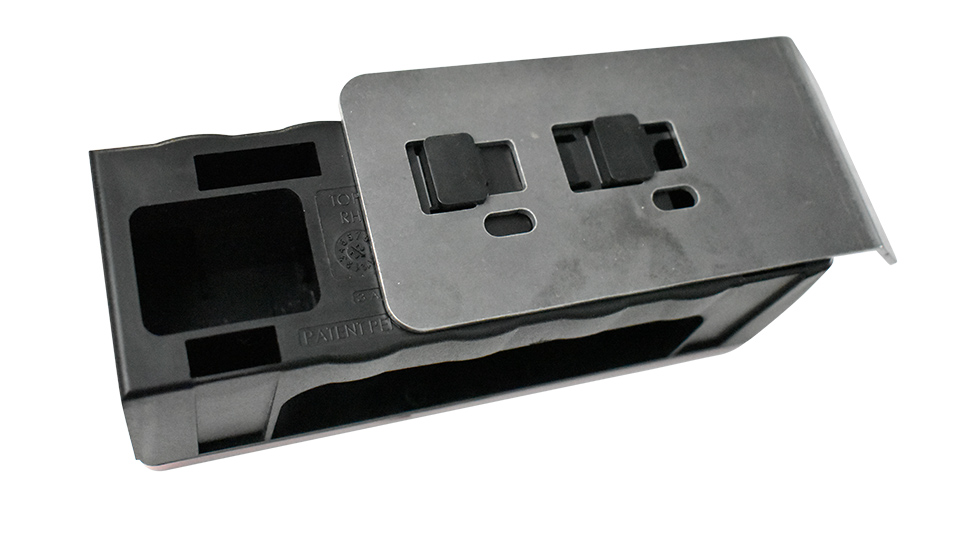

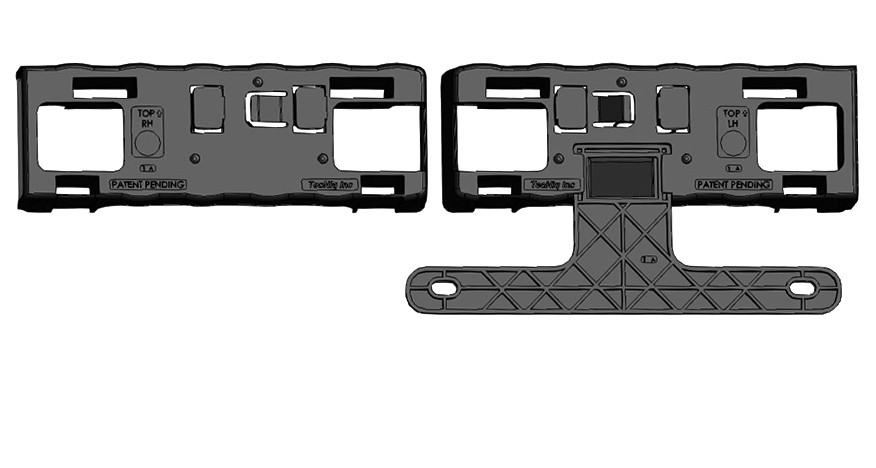

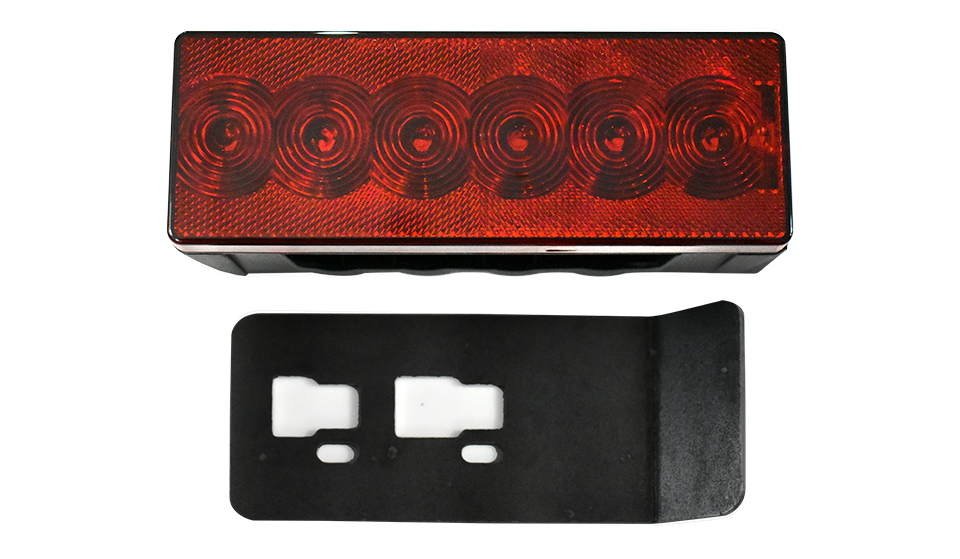

Locking bracket system that allows for no hardware to be used during tail light installation and the manufacturing process.
Ability to cut labor times for installs, as no hardware necessary to install
T88 TecLoq system brackets can also accommodate traditional lighting sources, for easy roadside fixes when original lights may not be accessible.
Meets or exceeds FMVSS 108 , and is dust and water proof being sonically welded.
TecNiq's Limited Lifetime Warranty
DOT Rated
WIRE COLORS
White – Ground, Brown – Low/License Plate (left), Green (right) – High, Yellow (left) – High

Product Description

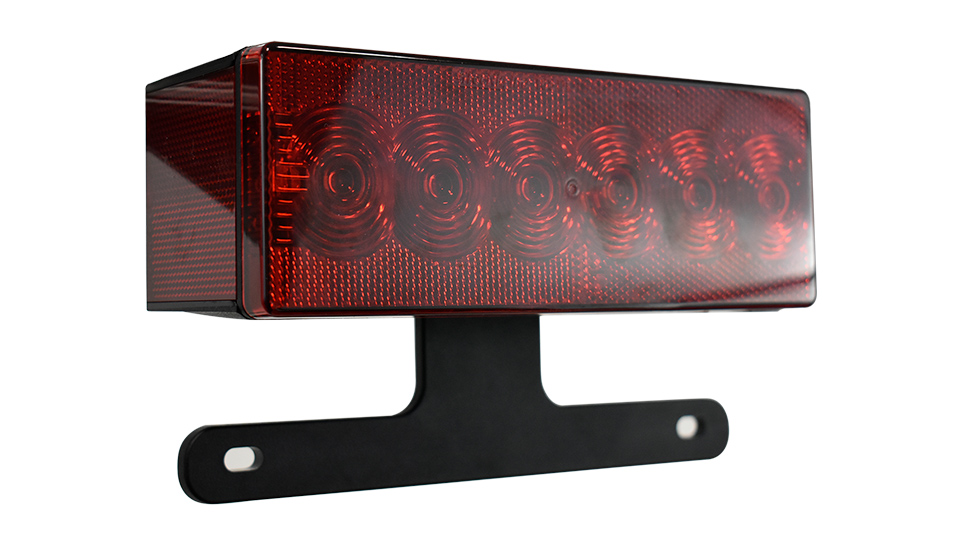

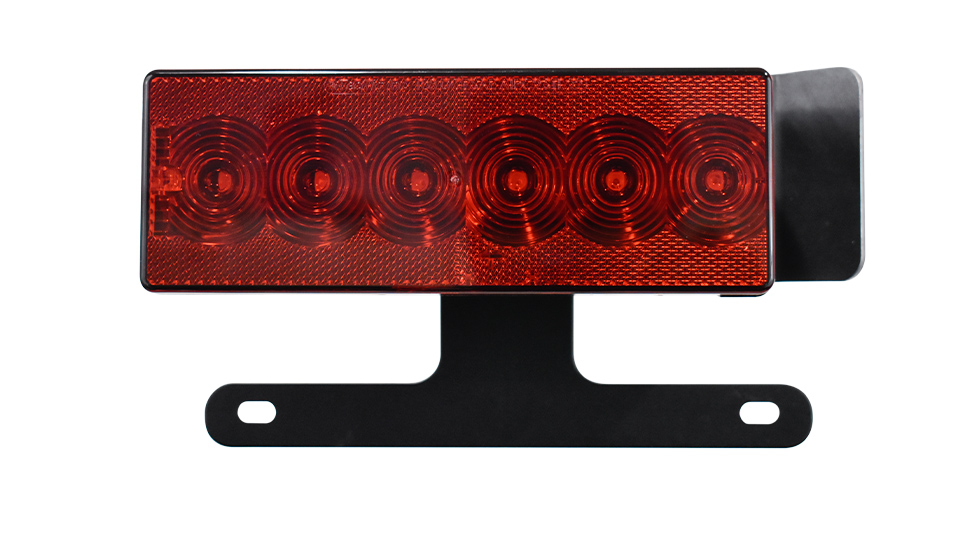

TecNiq's ALL NEW T88 TecLoq System is an evolution in the trailer lighting industry. The TecLoq lights feature an all new, locking interface with a bracket design that locks the box tail light into place with no fasteners necessary. The T88 box light is an 8 function light (left side includes license plate light) and/or 7 function for the right, including stop, tail, turn, combination side marker and clearance lights, as well as rear and side reflectors. These lights are SUBMERSIBLE!

Downloads

Document	Size
Trailer Wiring Diagram	128 KB
T88 Diagram Drawings	141 KB
T88 Product Sheet	2394 KB
T88-T89 TecLoq Bracket Cutout Template	111 KB

Product Specifications

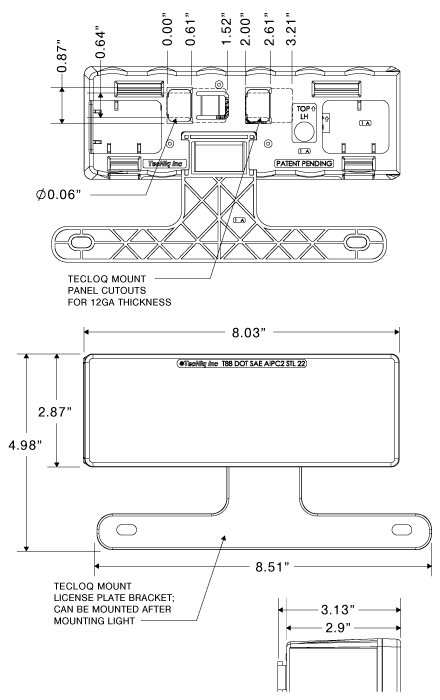

Dimensions:

8"x 2.88"x 2.88"

LEDs:

7 +1 white license plate light on left side

Voltage:

9 - 14V DC

Current:

0.155A - 0.10A Left
0.055A - 0.10A Right

Connector:

Tri-Pole (PL-3)

LED Colors:

Red

Mounting:

TecLoq - hardware free system

Wire Colors:

White Wire	—	Ground
Brown Wire	—	Low Intensity
Green Wire	—	Right Stop/Turn
Yellow Wire	—	Left Stop/Turn

Part Numbers

Part Number	Description	LED – Lens	StdPack	Connector
T88-RRLT-1	8 Function Slim Line Snap Mount Tail Light Left Side w Tripole *Does not include mounting bracket		TBD	Tri Pole
T88-RRRT-1	7 Function Slim Line Snap Mount Tail Light Right Side w Tripole		TBD	Tri Pole
