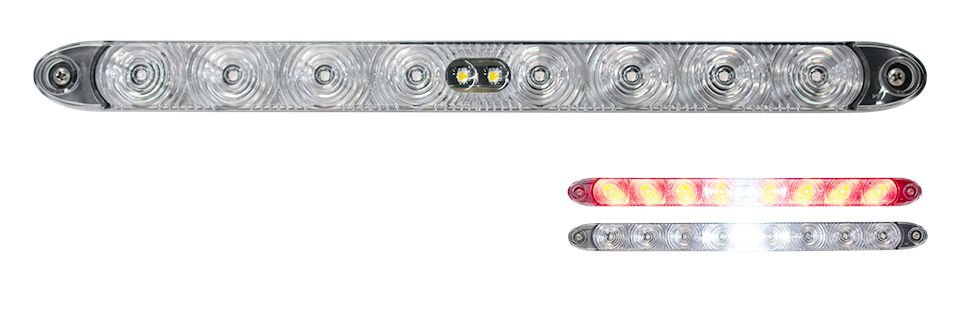

T15 : Stop/Tail/Turn/Reverse

Related Products


  Features

  • FMVSS 108 - meets all standards for wide and narrow vehicles
  • IP68 Rated - Dust and water proof with hermetic seal
  • TecSeal Urethane Potting - Guaranteed Circuit Board Protection
  • Impact resistant lens
  • UV Resistant automotive grade polycarbonate lens
  • Multiple mounting positions - horizontal, vertical, or any angle
  • Rated LED Life - 50,000 hrs
  • Lifetime Limited Warranty
  • WIRE COLORS
    White –
    Ground, Red – High/Turn, Black – Low/Dim, Yellow – Reverse

  Specifications

Dimensions:
LEDs: 11
Voltage: 9 - 14V DC
Current: 0.11A-0.15A Brake/Turn
0.25A-0.35A Reverse
Connector: 9" wire
Mounting: Surface mount using 2 screws (screw covers included)
LED Colors: Red/White combo
Wire Colors:
White Wirered stripeGround
Red WireStop/Turn
Black WireTail
Yellow WireReverse

  Part Numbers

Part NumberDescriptionLED – LensStdPackConnector
T10-0B00-1T10 Black Trim Ring   100-
T10-0C00-1T10 Chrome Trim Ring   100-
T10-0G00-1T10 Noeprene gasket   100-

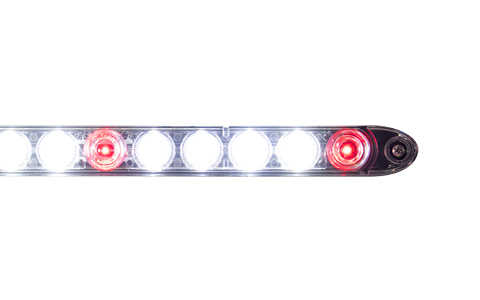

T14-RW00-1Identification and Load Lamp Combo   100Pigtail
T15-RCW0-1Low profile Red LED Clear Lens with Reverse   100Pigtail
