M90 : Livewell Lights

Completely waterproof light, perfect for illuminating steps or walk ways

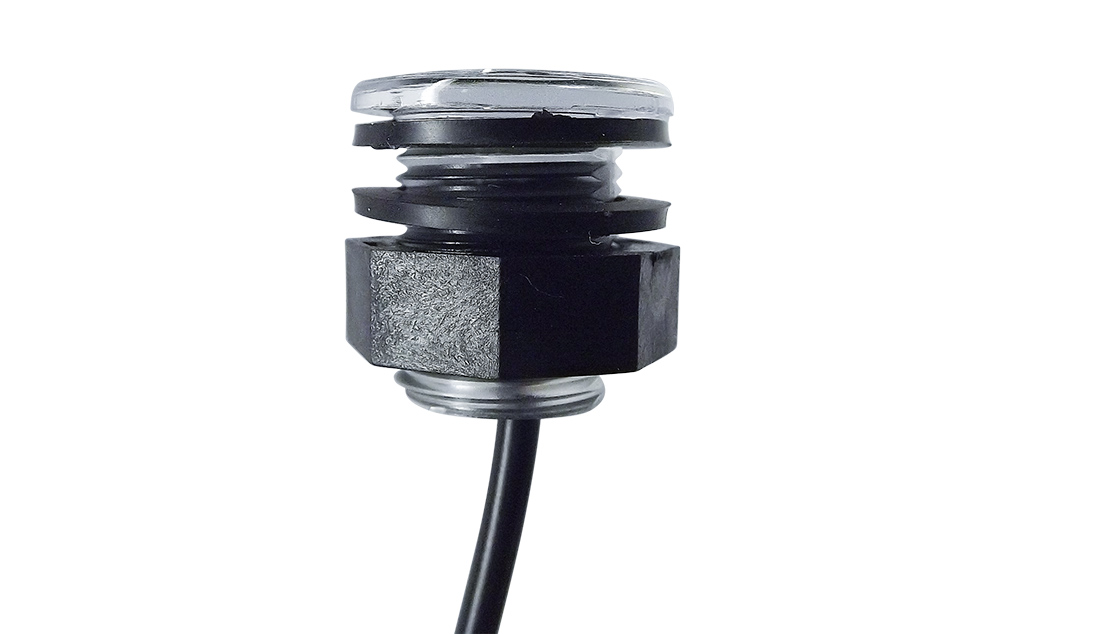

Easy installation with threaded nylon nut
Comes with our corrosion resistant 316 SS polished cover
IP68 Rated - water & dust proof
Life performance: 50,000 hours
Illuminates your livewell for the life of your boat.
Smooth lens surface, blends into well wall nicely

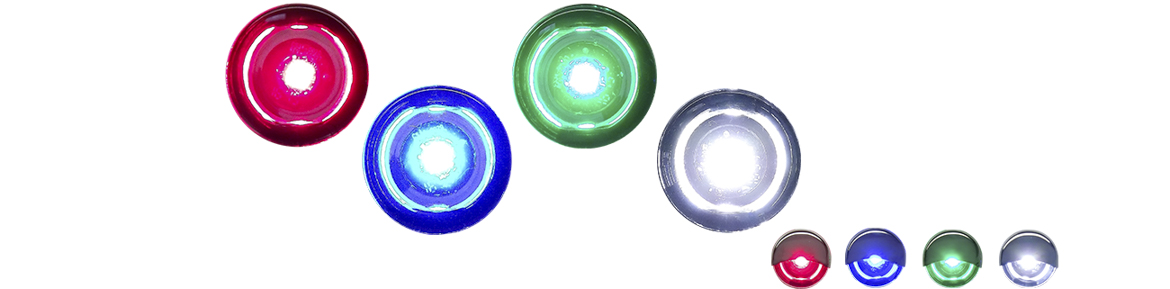

Available in four colors, Red, Green, Blue, and White
Includes (2) chemical resistant TPE gaskets, and one nylon nut
Vibration and shock proof
WIRE COLORS
Black – Ground, White – Positive

Related Products

Accent Lights

P2 Rated Miniature Side Marker

Grommet Mount Step Accent Light

Product Description

Introducing the very best in Livewell Illumination - TecNiq's M90. TecNiq's new Livewell Lights are available in Blue, Green, Red, and White colored LEDs. Guaranteed to be water & shock proof for a lifetime of use. These lights are easily installed with the threaded nut attachment design. They include two TPE gaskets that are chemical & gasoline resistant. For dependable livewell lighting, look no further than TecNiq's M90 Livewell Lights.

Downloads

Document	Size
Product Sheet	1205 KB
Specification Sheet	166 KB

Product Specifications

Dimensions:

No Cover: ∅ 0.90" x 0.905"

With Cover: ∅ 0.96" x 0.975"

LEDs:

Voltage:

9 - 14V DC

Current:

0.05A-0.07A Red
0.02A-0.03A Green/Blue
0.06A-0.08A White

Wire:

LED Colors:

White • Blue • Red • Green

Wire Colors:

White Model

Black Wire	—	Ground
White Wire	—	12/24VDC Power

RGB Model

Black Wire	—	12/24VDC Power
Red Wire	—	Ground (Red)
Green Wire	—	Ground (Green)
Blue Wire	—	Ground (Blue)

Mounting:

Mounts using 3/4" hole with nylon nut and TPE gaskets

Part Numbers

Part Number	Description	LED – Lens	StdPack	Connector
M90-3C00-1	Interior Accent Light, RGB LED		50	Sheathed Pigtail (9")
M90-3S00-1	Interior Accent Light, RGB LED, SS Cover		50	Sheathed Pigtail (9")
M90-BC00-1	Live Well Light, Blue, TPU Gasket, Nylon Nut		50	Sheathed Pigtail (9")
M90-BC0F-1	Live Well Light, Blue, TPU Gasket, Nylon Nut w xTM06-2S		50	Sheathed Pigtail (9")
M90-BS00-1	Interior Accent Light, Blue LED, SS Cover		50	Sheathed Pigtail (9")
M90-GC00-1	Live Well Light, Green, TPU Gasket, Nylon Nut		50	Sheathed Pigtail (9")
M90-GS00-1	Interior Accent Light, Green LED, SS Cover		50	Sheathed Pigtail (9")
M90-RC00-1	Live Well Light, Red, TPU Gasket, Nylon Nut		50	Sheathed Pigtail (9")
M90-RS00-1	Interior Accent Light, Red LED, SS Cover		50	Sheathed Pigtail (9")
M90-WC00-1	Live Well Light, White, TPU Gasket, Nylon Nut		50	Sheathed Pigtail (9")
M90-WS00-1	Interior Accent Light, White LED, SS Cover		50	Sheathed Pigtail (9")
