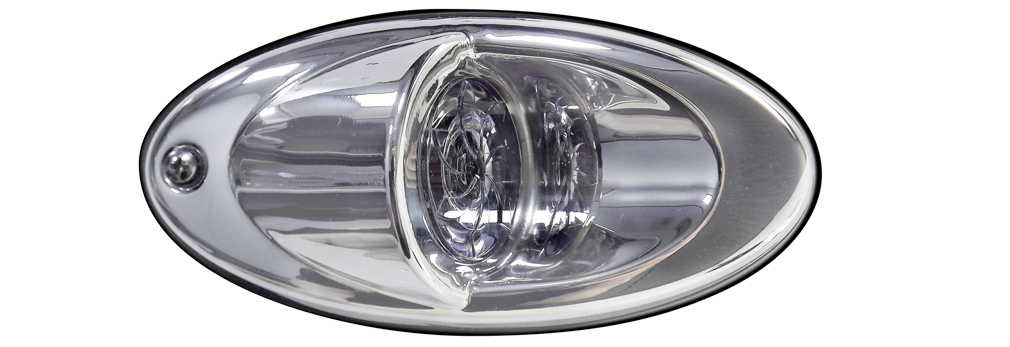

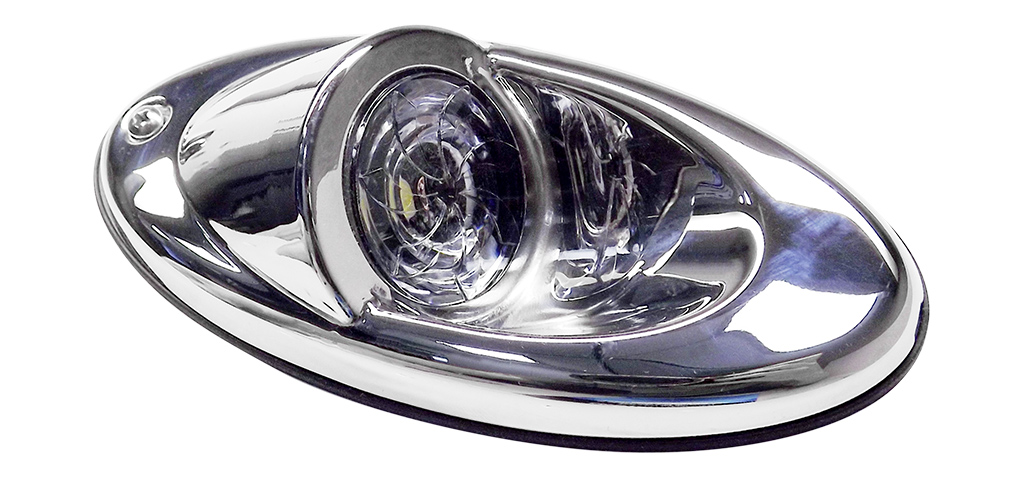

E60 : Flush Mount Docking Light

Related Products


  • Combines great appearance with powerful performance of 2000 lumens each
  • Waterproof design, made with our TecSeal Urethane potting
  • Anodized cast aluminum heatsink
  • 316 Stainless steel cover

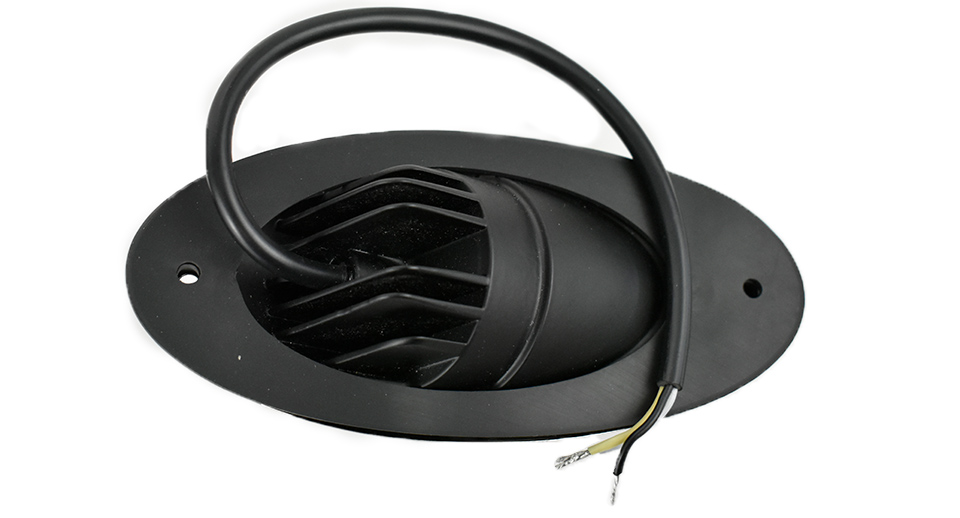

  • Form fitting gasket to protect the boat finish
    Black –
    Ground, White – Positive/High Intensity, Yellow (dual intensity model) – Low Intensity


LEDs: 1
Lumens: 2000
Voltage: 9 - 30 VDC
Current: 1.25A - 1.75A

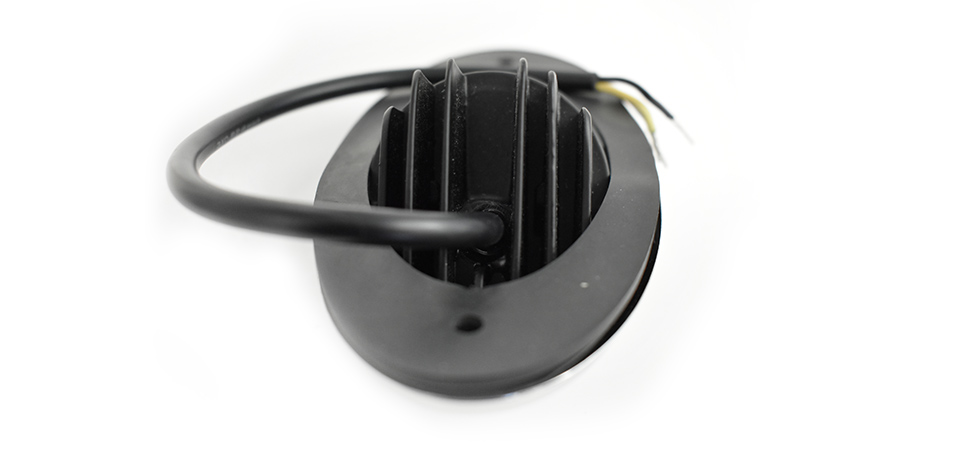

Wire: 12"
Mounting: Surface mounted with two screws
LED Colors: White
Wire Colors:
White WireHigh Intensity
Yellow WireLow Intensity
Black WireGround
Wire Colors:
WhitePositive/High Intensity
Yellow (dual intensity model)Low Intensity

  Part Numbers

Part NumberDescriptionLED – LensStdPackConnector
E60-WS20-1E60 Through Hull Docking Light Dual Intensity   6 PairsSheathed Pigtail (12")
