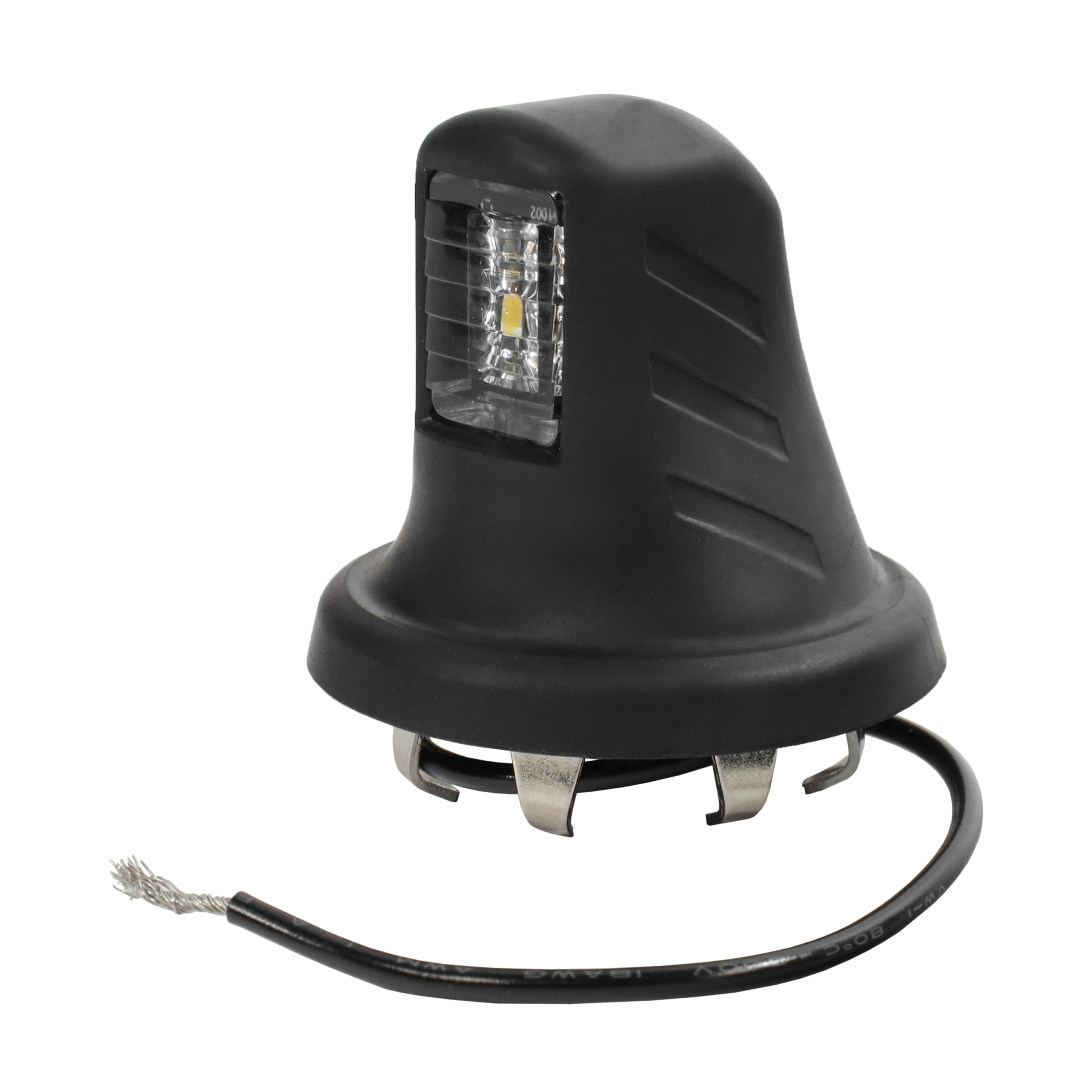

L19 License Plate Light
L19 License Plate Light
Technical Features
- IP68 Rated - Dust and Waterproof
Easy installation – No hardware required; snaps into 1.25" hole
- SAE DOT rated
- UV and impact resistant automotive grade polycarbonate lens
TecNiq L19 License Plate Light snaps into a 1.25" sheet metal hole for fast, clean installation. When mounted within 1.4" of the top of the plate, or used as a pair within 3" of each side. It provides compliant, bright illumination. Built with a polycarbonate lens, urethane potting, and automotive-grade LEDs for long-lasting durability.
| Dimensions |
1.7" x 1.7" x 1.9"
|
| LEDs | 1 |
| Voltage | 9 - 14 V |
| Current |
68mA - 92 mA |
| Connectors | Pigtail |
| Mounting | Surface |
| LED Colors | White |
| Wire Colors |
Black Wire - Positive White/Snap Ring - Ground |
| Lens Colors | Clear |
| Name | Description | LED | Lens | STD Pack | Connector | |
|---|---|---|---|---|---|---|
| L19-WB00-1 |
1IN Push In Flexible License Lamp 8IN PigTl
|
 |
 |
|||
| L19-WBG0-1 |
1IN Push In Flexible License Lamp Self Gnd 7IN PigTl
|
|
|
|||
| L19-WBG1-1 |
1IN Push In Flexible License Lamp Self Gnd 17IN PgTl
|
|
|
Prop 65 Warning
This product can expose you to chemicals including lead, which is known to the State of California to cause cancer, birth defects or other reproductive harm.
