E24 Rectangular Dome Light
E24 Rectangular Dome Light
Technical Features
- IP68 Rated - Dust and water proof
Available in Frosted or Clear push button lens for on demand lighting
- Made with high grade polycarbonate, for excellent optic quality and impact resistance
- Reliable performance over 50,000 hours
The TecNiq E24 Interior Dome Light provides reliable, even illumination for a wide range of interior applications. Featuring an integrated push-button lens, the E24 allows for simple on/off operation, delivering light exactly when and where it’s needed. Designed for versatility, the E24 is well-suited for use in trailers, utility vehicles, work trucks, and marine interiors.
| Dimensions |
5.76" x 2.76" x 0.75"
|
| LEDs | 18 |
| Lumens | 527 Lumens |
| Current | .265A-.345A |
| Connectors | Pigtail |
| Mounting | Surface |
| LED Colors | White |
| Wire Colors |
White Wire - Ground Black Wire - Positive |
| Lens Colors | Frosted Clear |
| Name | Description | LED | Lens | STD Pack | Connector | |
|---|---|---|---|---|---|---|

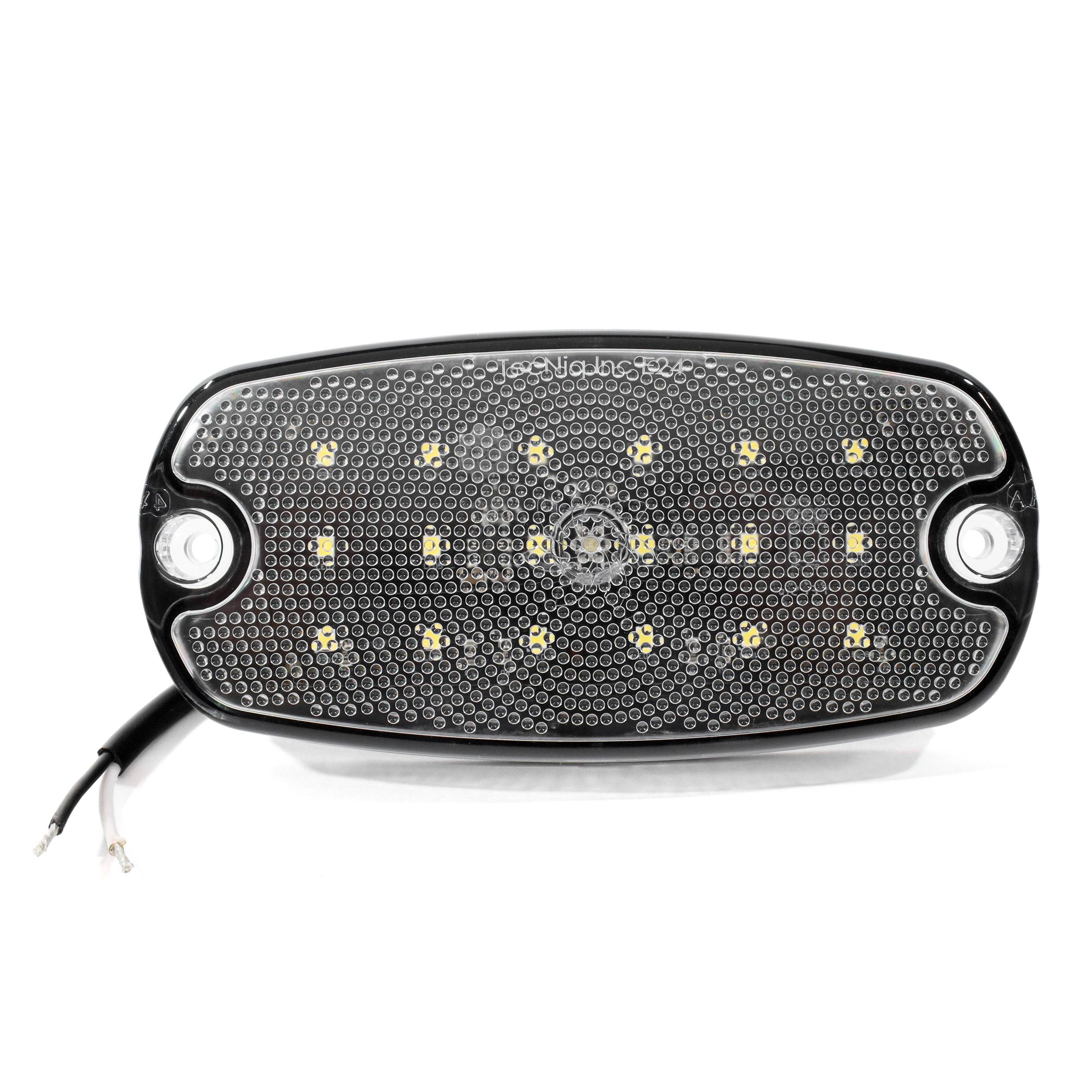

| E24-WC00-1 |
Push Button Dome Lt SM Wht 18LED Clr Lns PigTl
|
 |
 |
|||
| E24-WCD0-1 |
Dome Lt Direct Wire Wht Clr Lns SM 6IN Sthd PigTl
|
|
|
|||

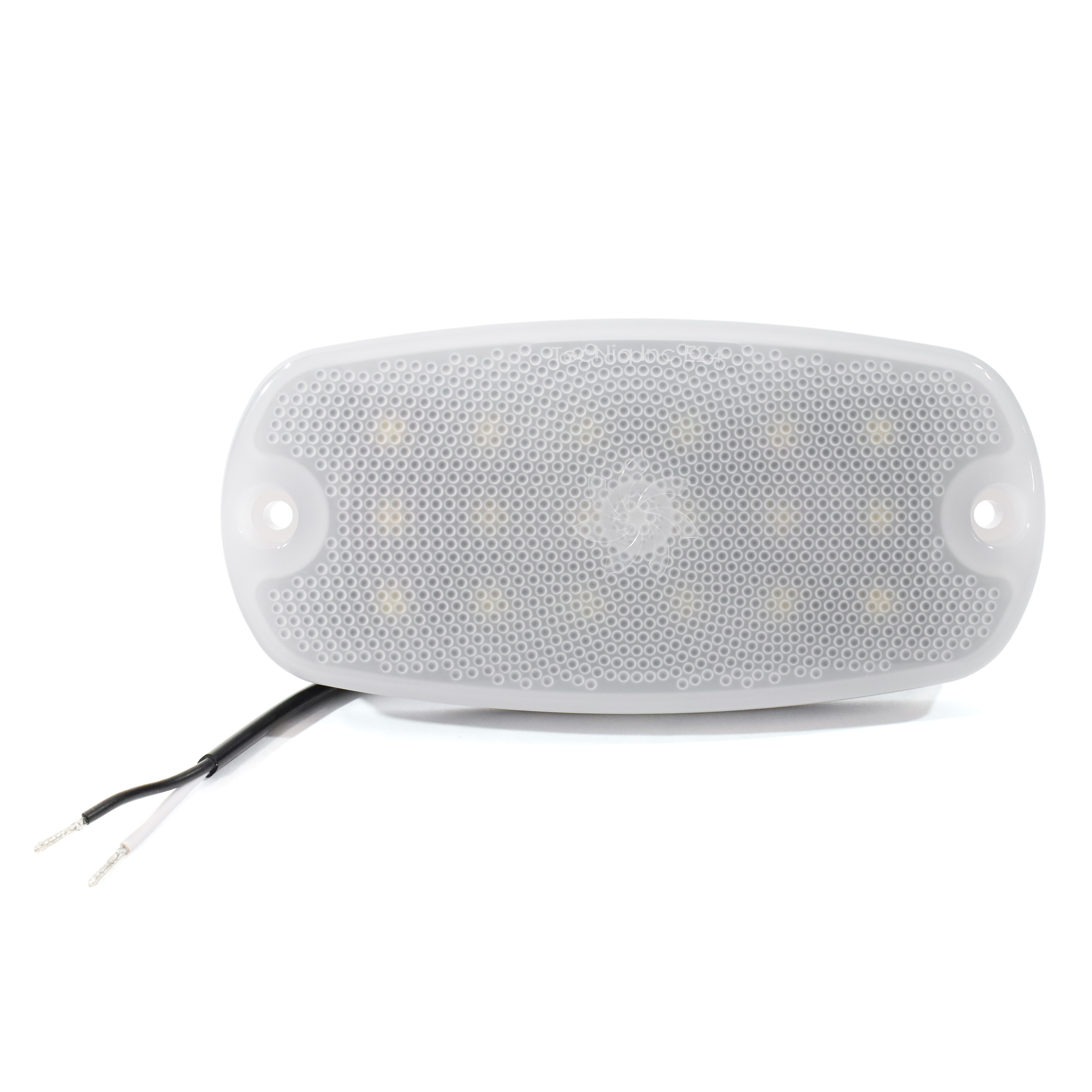

| E24-WF00-1 |
Push Button Dome Lt SM Wht 18LED Diffuse Lns PigTl
|
|
|
|||
| E24-WFD0-1 |
Dome Lt Direct Wire Wht Diff Lns SM 6IN Sthd PigTl
|
|
|
Prop 65 Warning
This product can expose you to chemicals including lead, which is known to the State of California to cause cancer, birth defects or other reproductive harm.
