E17 Oblong Interior Light
E17 Oblong Interior Light
Technical Features
Push button lens for on demand lighting
- IP68 Rated - Dust and Waterproof
Available in Black or Chrome Cover
- Excellent optic quality with impact resistant lensing
Dual-intensity output: 150 lumens (low) and 300 lumens (high)
The TecNiq E17 Courtesy Light delivers versatile, on-demand illumination exactly where you need it. Featuring an integrated push-button lens, the E17 allows you to easily cycle between off, low, and high output settings for precise light control. Available with multiple trim ring options, this light blends seamlessly into a wide range of interiors and exterior utility applications.
| Dimensions |
3.1" x 1.9" x 0.79"
|
| LEDs | 6 |
| Lumens | 150 (low) - 300 (high) |
| Voltage | 12V |
| Current |
.1A - .15A (low) , .225A - .275A (High) |
| Max Amps | .275A |
| Connectors | Pigtail |
| LED Colors | White |
| Wire Colors |
Black Wire - Ground White Wire - Positive |
| Lens Colors | Frosted Clear |
| Name | Description | LED | Lens | STD Pack | Connector | |
|---|---|---|---|---|---|---|

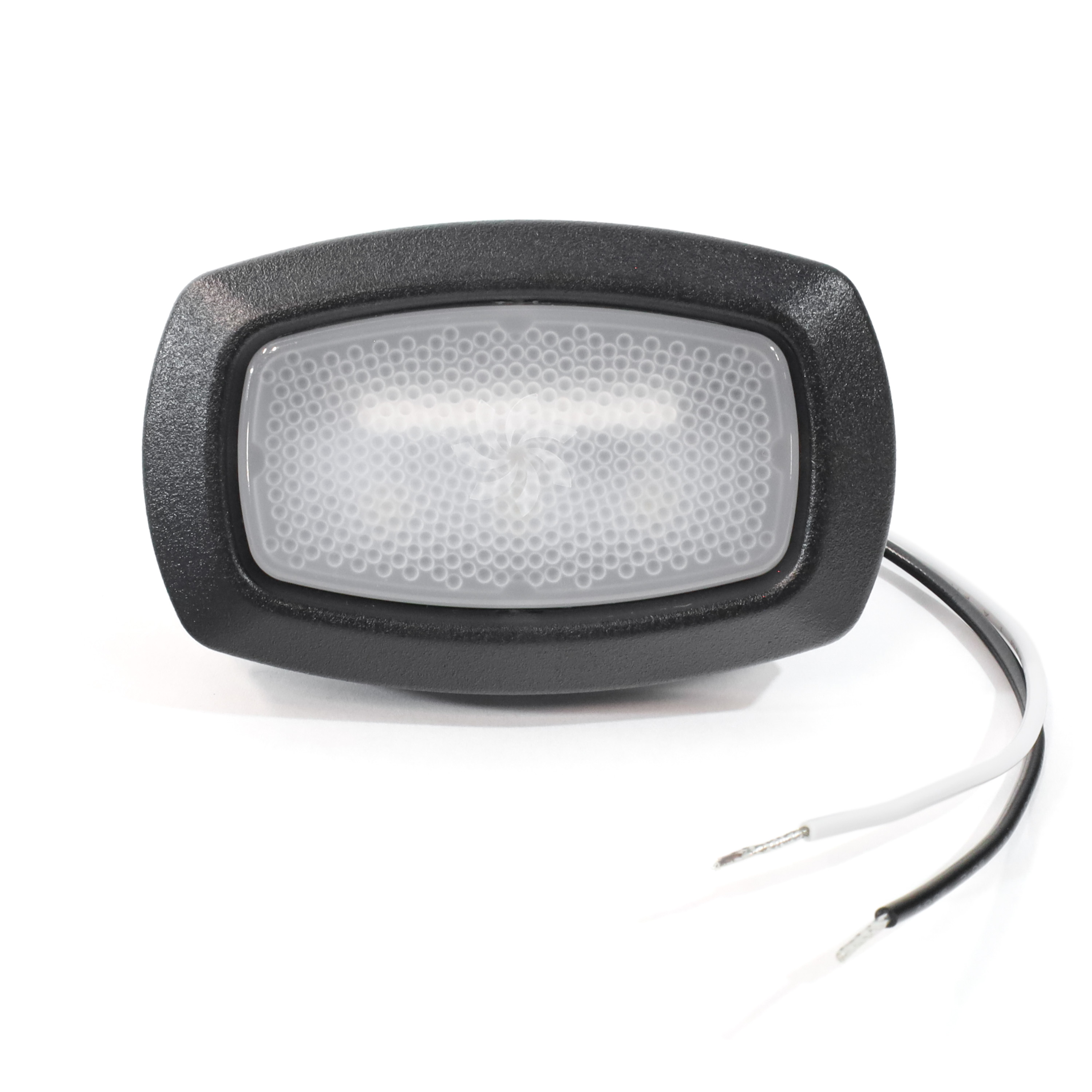

| E17-WB00-1 |
Courtesy Lt Wht 6LED Blk Trim SM Push Button PgTl
|
 |
 |
|||

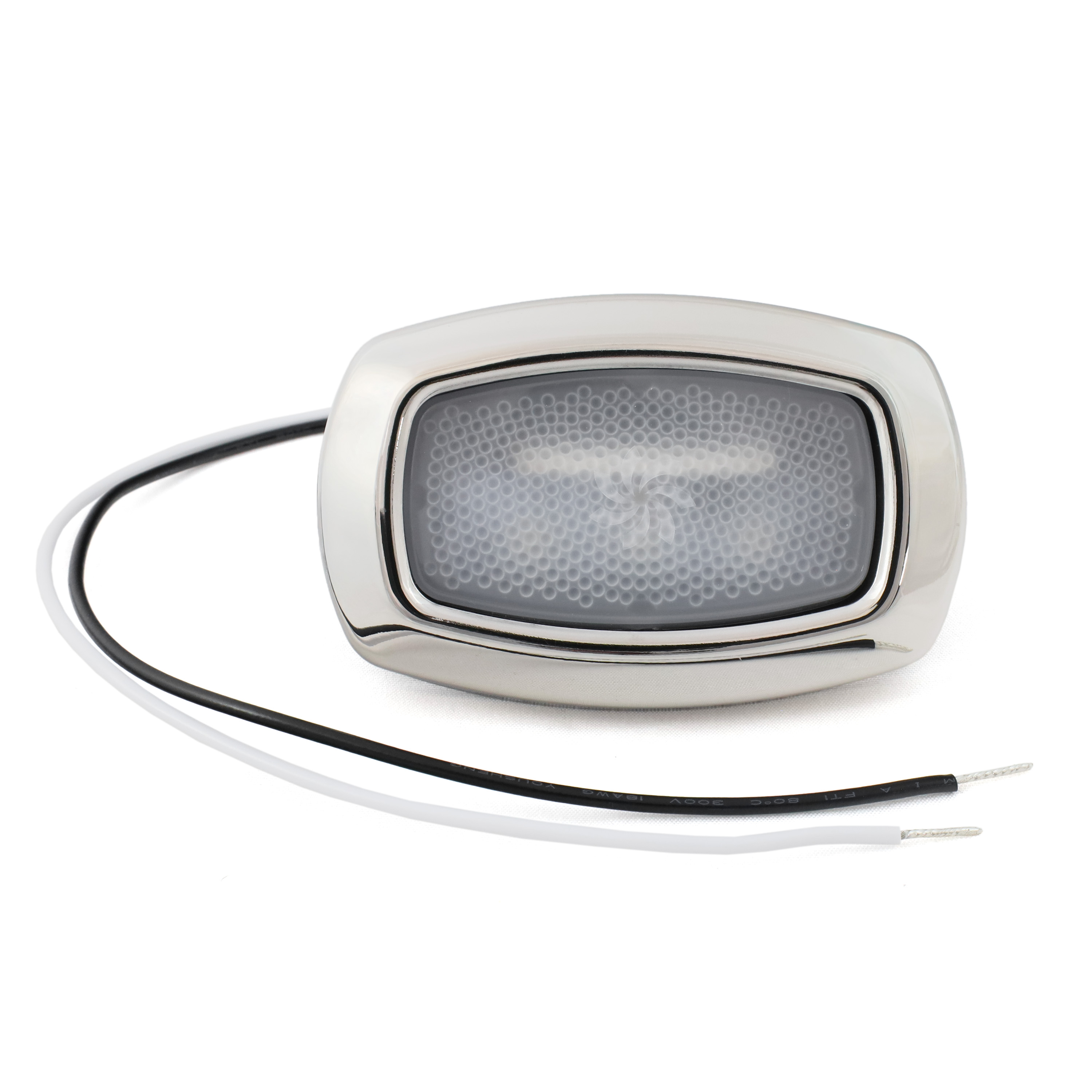

| E17-WS00-1 |
Courtesy Lt Wht 6LED SS Trim SM Push Button PgTl
|
|
|
