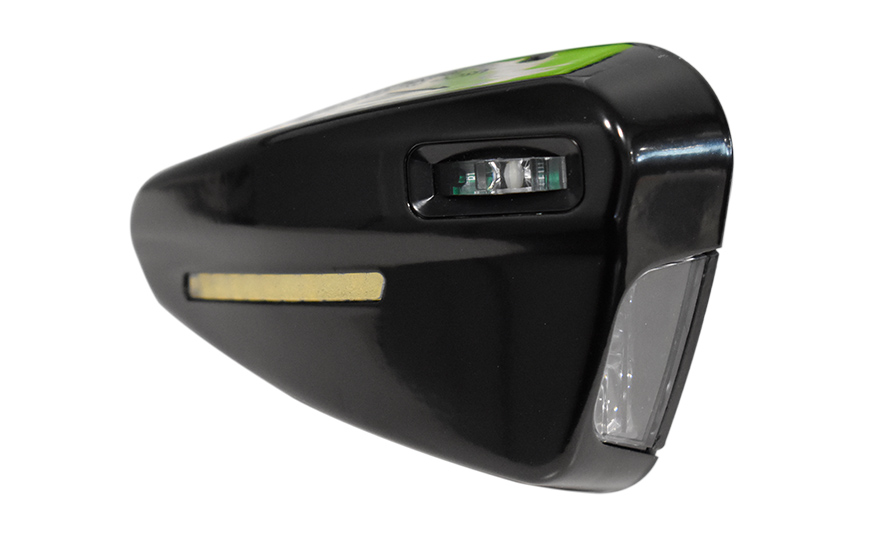

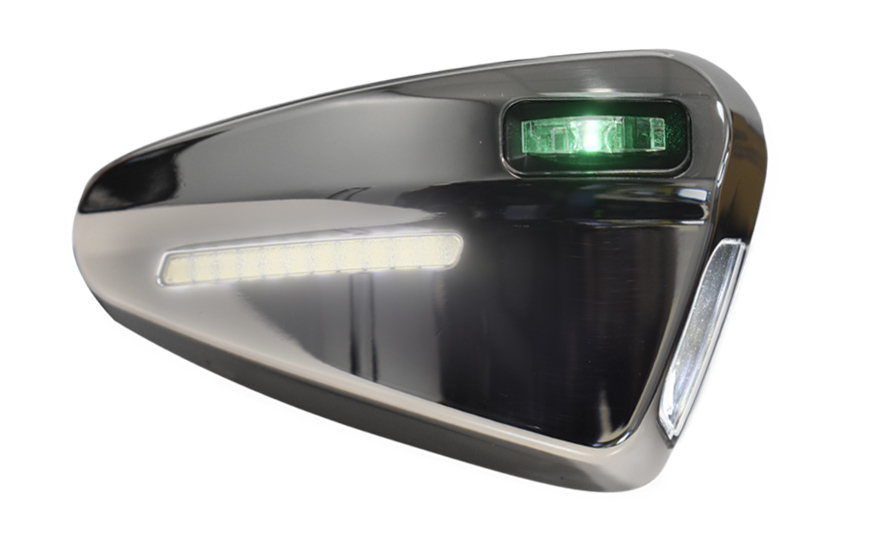

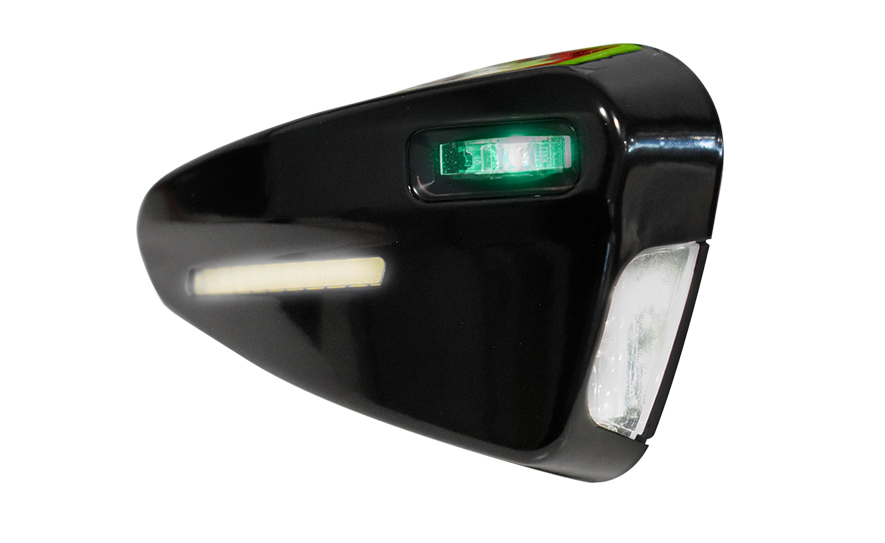

M510 : Docking/Navigation Light

Related Products


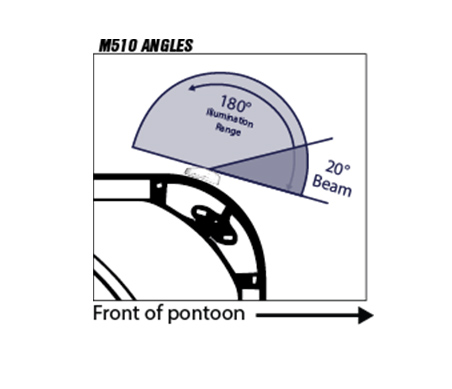

  Features

  • Stainless steel body for protection against salt & fresh water conditions
  • Thermal overheat protection for longer lasting lifespan
  • Surface mount design is a snap to install, no large holes to seal
  • TecSeal Potting for guaranteed circuit board protection
  • (12) LED Waveguide Courtesy light
  • (1) LED Dedicated Navigation light
  • (3) LED High powered Docking light
  • WIRE COLORS
    Black –
    Ground, White – Docking, Yellow – Navigation

  Specifications

Dimensions:
LEDs: 15
Lumens: 1750
Voltage: 9 - 14V DC
Current: 1.0A per light
Wire: 11" Sheathed Pigtail
Mounting: Surface mount using (2) #8 screws
LED Colors: Green/White • Red/White
Wire Colors:
Black WireGround
White WireDocking LEDs
Yellow WireNavigation LED

  Part Numbers

Part NumberDescriptionLED – LensStdPackConnector
M510-WSP0-1Docking/Navigation Light White LED SS Cover Port Side   TBDSheathed Pigtail (11")
M510-WSS0-1Docking/Navigation Light White LED SS Cover Starboard Side   TBDSheathed Pigtail (11")
M511-0S03-1M511 Stainless Cover Starboard   TBDSheathed Pigtail (11")
M511-0S08-1M511 Stainless Cover Port   TBDSheathed Pigtail (11")
M511-WSP0-1Docking/Nav Light White LED SS Cover Port Side w/ 30" Wire   TBDSheathed Pigtail (30")
M511-WSPD-1Docking/Nav Light White LED SS Cover Port Side w/ xT04-6P 30" Wire   TBDxT04-6P (30")
M511-WSPF-1Docking/Nav Light White LED SS Cover Port Side w/ xT06-3S 30" Wire   TBDxT06-6S (30")
M511-WSS0-1Docking/Nav Light White LED SS Cover Starboard Side w/ 30" Wire   TBDSheathed Pigtail (30")
M511-WSSD-1Docking/Nav Light White LED SS Cover Starboard Side w/ xT04-6P 30" Wire   TBDxT04-6P (30")
M511-WSSF-1Docking/Nav Light White LED SS Cover Starboard Side w/ xT06-3S 30" Wire   TBDxT06-6S (30")
M512-WSP0-1Sidemount Docking Light White LED SS Cover Port Side 30" Wire   TBDSheathed Pigtail (30")
M512-WSPF-1Sidemount Docking Light White LED SS Cover Port Side w/ xT04-2P   TBDxT04-2P (30")
M512-WSS0-1Sidemount Docking Light White LED SS Cover Starboard Side 30" Wire   TBDSheathed Pigtail (30")
M512-WSSF-1Sidemount Docking Light White LED SS Cover Starboard Side w/ xT04-2P   TBDxT04-2P (30")
