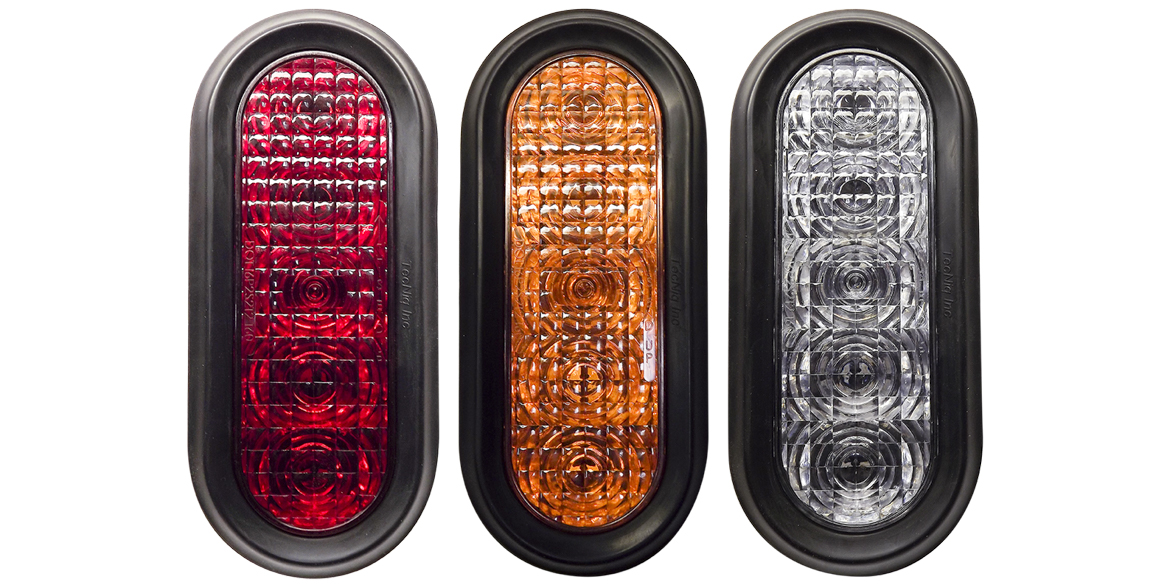

T60 : 6" Oval Stop/Tail/Turn Grommet Mount

* Some part numbers for this product ship without mounting hardware. Please be sure to add mounting hardware to the PO, if needed.

Fit all industry standard 6" oval grommet mount applications
Includes our TPE grommet, offering superior toughness and chemical resistance
Can be purchased for horizontal or vertical position mounting - separate part numbers
TecSeal Urethane Potting - Guaranteed Circuit Board Protection
IP68 Rated - Dust and water proof with hermetic seal
Durable impact resistant lens
Meets all FMVSS 108 requirements for wide and narrow vehicles
Reliable performance over 100,000 hours
Also available in T61 surface mount version and T62 flange mount
DOT Rated
WIRE COLORS
White – Ground, Red – High/Turn, Black – Low/Dim

Related Products

Add to PO

6" Oval Grommet

Add to PO

12" 3-Pole .156" Bullet w/#6 GND Lug - Straight

Add to PO

12" 3-Pole .156" Bullet w/#6 GND Lug - 90 degree

Add to PO

Amp - Pigtail Wire Adapter

Add to PO

Amp - Tripole Adapter

Add to PO

Y Style plug with 6" wires

6" Oval Stop/Tail/Turn Surface Mount

6" Oval Stop/Tail/Turn Flange Mount

6" Oval LED High Visibility STT

6" Oval Stop/Tail/Turn

6" Oval LED High Visibility STTR

Product Description

Following the success of our 4" round tail lamp, TecNiq has introduced a line of 6" oval stop-turn-tail lamps. TecNiq's T60 is offered in horizontal and vertical mounting styles for DOT compliance. These lights employ the same world leading lens design and high quality construction used throughout our product line to create a top quality, cost-effective lighting solution.

Downloads

Document	Size
T60 Product Sheet	373 KB
T60 Specification Sheet	289 KB

Product Specifications

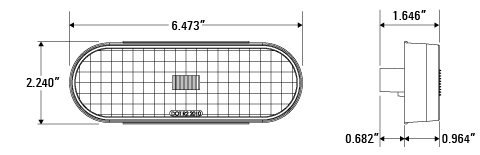

Dimensions:

Grommet Mount - 6.45"x 2.45"x 1.65"

LEDs:

Voltage:

9 - 14V DC

Current:

0.17A-0.23A Colored lens
0.10A-0.14A Red/Clear
0.28A-0.36A Amber/Clear
0.21A-0.27A White

Connector:

LED Colors:

Red • Amber

Mounting Styles:

Wire Colors:

White Wirered/amber stripe	—	Ground
Red Wire	—	Stop/Turn
Black Wire	—	Tail

Part Numbers

Part Number	Description	LED – Lens	StdPack	Connector
T60-0G00-1	6" Oval Grommet		-	-
T60-AAHA-1	Amber Turn Horiz. Grommet Mnt Amber Lens Amp Connect		100	Amp
T60-AAHP-1	6" Oval Amber Turn Horiz. Grommet Mnt Amber Lens Pigtail		140	Pigtail
T60-AAHT-1	6" Oval Amber Turn Horiz. Grommet Mnt Amber Lens 3 Pole		100	Tri Pole
T60-AAVA-1	6" Oval Amber Turn Vert. Grommet Mnt Amber Lens Amp Connect		100	Amp
T60-AAVP-1	6" Oval Amber Turn Vertical Grommet Mnt Amber Lens Pigtail		140	Pigtail
T60-AAVT-1	6" Oval Amber Turn Vertical Grommet Mnt Amber Lens 3 Pole		100	Tri Pole
T60-AAZHA-1	6" Oval Amber Strobe Horiz. Grommet Mt Amber Lens Amp Connector *This part number is only available in quantities over 1000.		100	Amp
T60-AAZHP-1	6" Oval Amber Strobe Horiz. Grommet Mnt Amber Lens Pigtail *This part number is only available in quantities over 1000.		140	Pigtail
T60-AAZHT-1	6" Oval Amber Strobe Horiz. Grommet Mnt Amber Lens 3 Pole *This part number is only available in quantities over 1000.		100	Tri Pole
T60-AAZVA-1	6" Oval Amber Strobe Vertical Grommet Mt Amber Lens Amp Connector *This part number is only available in quantities over 1000.		100	Amp
T60-AAZVP-1	6" Oval Amber Strobe Vertical Grommet Mnt Amber Lens Pigtail *This part number is only available in quantities over 1000.		140	Pigtail
T60-AAZVT-1	6" Oval Amber Strobe Vertcial Grommet Mnt Amber Lens 3 Pole *This part number is only available in quantities over 1000.		100	Tri Pole
T60-ACHA-1	6" Oval Amber Turn Horiz. Grommet Mount Clear Lens Amp		100	Amp
T60-ACHP-1	6" Oval Amber Turn Horiz. Grommet Mount Clear Lens Pigtail		140	Pigtail
T60-ACHT-1	6" Oval Amber Turn Horiz. Grommet Mount Clear Lens 3 Pole		100	Tri Pole
T60-ACVA-1	6" Oval Amber Turn Vertical Grommet Mount Clear Lens Amp Connector		100	Amp
T60-ACVP-1	6" Oval Amber Turn Vertical Grommet Mnt Clear Lens Pigtail		140	Pigtail
T60-ACVT-1	6" Oval Amber Turn Vertical Grommet Mnt Clear Lens 3 Pole		100	Tri Pole
T60-RCHA-1	6" Oval Red STT Horiz. Grommet Mount Clear Lens Amp		100	Amp
T60-RCHP-1	6" Oval Red STT Horiz. Grommet Mount Clear Lens Pigtail		140	Pigtail
T60-RCHT-1	6" Oval Red STT Horiz. Grommet Mount Clear Lens 3 Pole		100	Tri Pole
T60-RCVA-1	6" Oval Red STT Vertical Grommet Mount Clear Lens Amp		100	Amp
T60-RCVP-1	6" Oval Red STT Vertical Grommet Mount Clear Lens Pigtail		140	Pigtail
T60-RCVT-1	6" Oval Red STT Vertical Grommet Mount Clear Lens 3 Pole		100	Tri Pole
T60-RRHA-1	6" Oval Red STT Horiz. Grommet Mount Red Lens Amp		100	Amp
T60-RRHB-1	6" Oval Red STT Horiz. Grommet Mount Red Lens w/.180" Bullet		140	0.180" Bullets
T60-RRHP-1	6" Oval Red STT Horiz. Grommet Mount Red Lens Pigtail		140	Pigtail
T60-RRHT-1	6" Oval Red STT Horiz. Grommet Mount Red Lens 3 Pole		100	Tri Pole
T60-RRVA-1	6" Oval Red STT Vertical Grommet Mount Red Lens Amp		100	Amp
T60-RRVP-1	6" Oval Red STT Vertical Grommet Mount Red Lens Pigtail		140	Pigtail
T60-RRVT-1	6" Oval Red STT Vertical Grommet Mount Red Lens 3 Pole		100	Tri Pole
T60-WCHP-1	6" Oval White Light		140	Pigtail
T60-WCVA-1	6" Oval Vertical Mount Reverse Lamp		100	Amp
T99-0010-1	12" 3-Pole .156" Bullet w/#6 GND Lug - Straight		-	Tri Pole
T99-0020-1	12" 3-Pole .156" Bullet w/#6 GND Lug - 90 degree		-	Tri Pole
T99-0040-1	Amp - Pigtail Wire Adapter		-	Amp
T99-0050-1	Amp - Tripole Adapter		-	Amp - Tri Pole
T99-0060-1	Y Style plug with 6" wires		-	Tri Pole
